Descriptions:

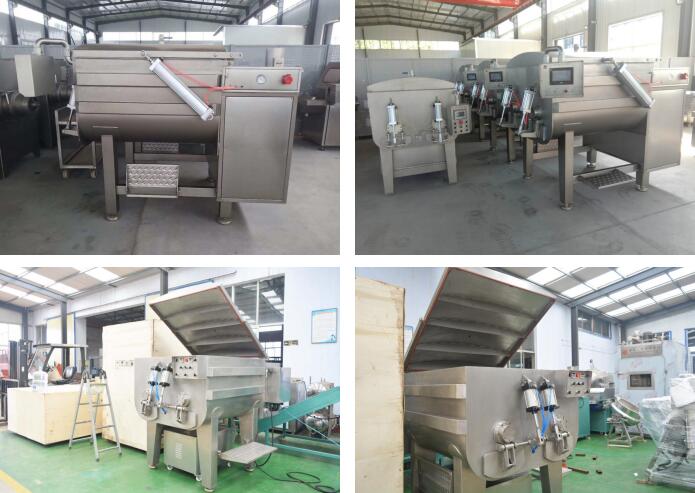

Bogen brand Vacuum Mixers mix the meat with other additives in absence of air, this can improve the retention of the color, smell and taste, reduce the time of the next processing and ensure longer shelf life.
Self-supported body made of high quality stainless steel, reliable and robust, meet high hygienic standard.
Features&Characteristics:

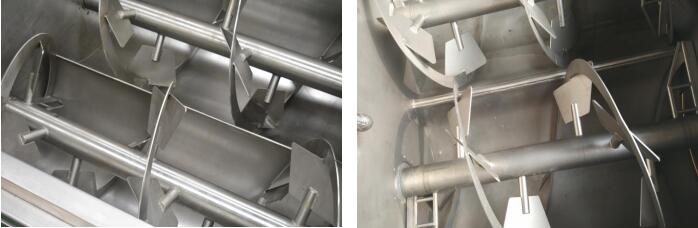

1.Excellent vacuum performance for optimal mixing results.Vacuum can be preset as required. 2.Special paddle structure achieves an efficient and energetic mixing without any damage to the products. 3.All the stuffs are pushed through the spiral boost devices which ensure uniform mixing results.
4.Electrode-mechanical or PLC control system can be selected. PLC control is operated via touch screen.
5.Total mixing time, interval time and various mixing type can be preset.
Technical specification:
Model |
BG-500 |
BG-750 |
BG-1200 |
Capacity |
400kg/batch |
500kg/batch |
900kg/batch |
Volume |
500L |
750L |
1200L |
Power |
7.5KW |
8KW |
11KW |
Compressed air |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
Vacuum level |
-0.06MPa |
-0.06MPa |
-0.06MPa |
Mixing axle speed |
Frequency conversion |
Frequency conversion |
Frequency conversion |
Weight |
650KG |
1100KG |
1900KG |
Dimensions |
1560*1120*1510mm |
1800*1100*1650mm |
2280*1400*1860mm |
